Great price on parallel to serial converter - serial to parallel.

This product has been discontinued.

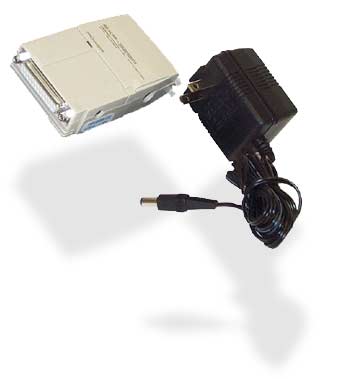

Model 109A - Bi-directional Parallel-Serial Converter-Buffer


Features
  • Printer Support
  • Parallel to Serial
  • Serial to Parallel
  • 512K Byte Buffer
  • Data Rate to 115.2 KBPS

Product Description

The Model 109a is a bi-directional interface for parallel and serial interfaces. Connect a computer with parallel output to a serial printer or a computer with serial output to a parallel printer. The Model 109a contains a 512 KB data memory. Operational parameters of the Model 109a are set via DIP switches which are accessible from the side of the unit and include direction of conversion, Baud rate, character length, parity and handshake mode. The handshake switch allows a software mode called X-ON/X-OFF or a hardware mode of operation which supports DTR/DSR and RTS/CTS.


Model Description Price Product Info
109A Bi-directional Parallel-Serial Converter Buffer $125 Specifications Manual
